  • Braided Shielded Cable Shielded Cable Wire

    Brand :CTCW

    Product origin :Shanghai, China

    Delivery time :Quantity(Meters) 1 - 20000 20001 - 50000 >50000 Est. Time(days) 5 10 To be negotiated

    Supply capacity :2000000 meters per day

    Shielded cable wire is suitable for general electronics,electrical equipment.
    Shielded cable wire has the characteristics of wear resistance, aging resistance, corrosion resistance, oil resistance and water resistance, and non-combustion. These characteristics determine that the shielded cable can be widely used in heavy industries such as electric power, metallurgy and petrochemical.
    Shielded cable wire outer protective layer acts like a protective cover that protects the transmission line inside the shielded cable. Especially for chemical substances with acid and alkali, this protective layer has a strong protective effect, can resist corrosion, maintain the normal operation of the cable, and prolong the service life of the cable.

    INTRODUCTION

    Description:

  • Rated temperature:80℃

  • Rated voltage:300V

  • Reference standard:UL Subject758,UL1581

  • Passes UL VW-1,cUL FT1 flame test and complies with RoHS

  • Insulation color:Green,blue,grey,gray or negotiable.

    Product parameters:

    UL2095

  • SR-PVC insulation

  • Tinned or bare stranded copper drain wire

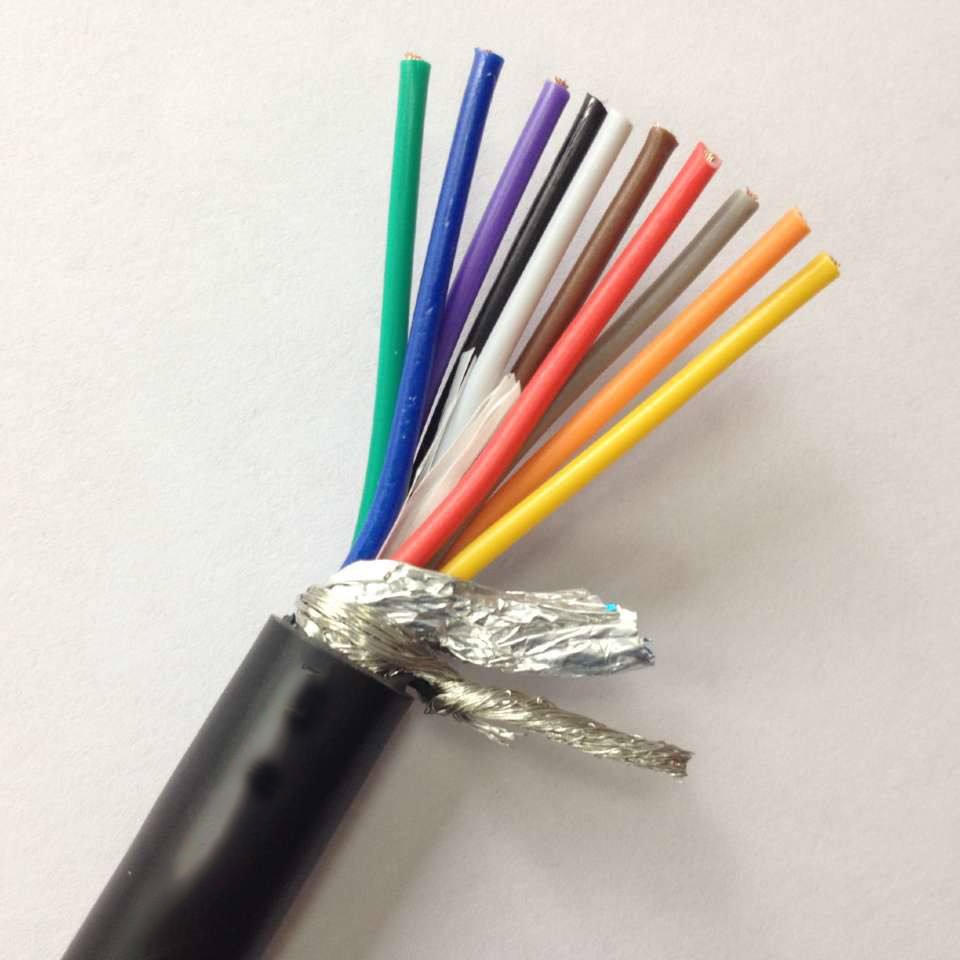

  • Cores cabled under AL-Mylar shield

  • Tinned or bare copper bared shield

  • SURFACE MARKING:Shielded Cable wireAWM E472053 STYLE 2095()AWG VW-1 80℃ 300V SHANG HAI CHAO TONG …… CShielded Cable wireAWM I A ()AWG 80℃ 300V FT1 LF

    UL2096



          Shielded Cable wire

  • SR-PVC insulation

  • Tinned or bare copper wire spiral shield

  • SURFACE MARKING:Shielded Cable wireAWM E472053 STYLE 2096 ()AWG VW-1 80℃ 300V SHANG HAI CHAO TONG …… CShielded Cable wireAWM I A ()AWG 80℃ 300V FT1 LF

    UL2547

  • SR-PVC insulation

  • Tinned or bare copper wire spiral shield

  • SURFACE MARKING:Shielded Cable wireAWM E472053 STYLE 2547()AWG VW-1 80℃ 300V SHANG HAI CHAO TONG …… CShielded Cable wireAWM I A ()AWG 80℃ 300V FT1 LF

    UL2562



  • PVC insulation

  • SURFACE MARKING:Shielded Cable wireAWM E472053 STYLE 2562 ()AWG VW-1 80℃ 300V SHANG HAI CHAO TONG …… CShielded Cable wireAWM I A ()AWG 80℃ 300V FT1 LF

    Noted:Core No. and specification are not limited to the above regulation,they could be customized.
